Ultracool TC Side Mount Oil Cooler - Touring `2009-2016 Gloss BLK

Ultracool TC side-mount oil cooler for 2009-2016 Harley Touring, engineered to lower oil temps up to 50°F and maintain optimal 200–230°F operation. Features dual sealed fans, aluminum heat exchanger with turbulators, and plug-and-play wiring that mounts cleanly on the frame down tube.

Features

• Powder-coated black grill cover protects heat exchanger and fans
• Dual-pass aluminum heat exchanger with turbulators
• Sealed IP68 dual fans produce 220 CFM airflow
• Thermal switch triggers fans at 210°F, shuts off at 185°F
• Black nylon-coated stainless steel braided oil lines with AN6 fittings
• Plug-and-play wiring harness with relay and waterproof connectors
• LED indicator light shows fan operation status
• Oil line fitting wrench and detailed instructions included

Specifications

• Brand: Ultracool
• Manufacturer Part #: SMT-2G
• Length: 11 in
• Width: 9 in
• Height: 6 in
• Weight: 8 lbs

Fitment

Fits 2009-2016 Harley-Davidson Touring models. Does not fit with OEM lower fairing. Fits both oil and twin-cooled models (permanent modification required to lower left fairing on twin-cooled bikes).

Frequently Asked Questions

Does this fit my 2009-2016 Touring with the factory lower fairing?

No — this cooler will not fit with the OEM lower fairing. You must remove the fairing or choose a different mounting location.

Will this work on a twin-cooled Touring?

Yes, but it requires a permanent modification to the lower left fairing to clear the cooler body.

At what temperature do the fans turn on?

The thermal switch activates the dual fans automatically when oil reaches 210°F and keeps them running until oil cools to 185°F.

What's included in the kit?

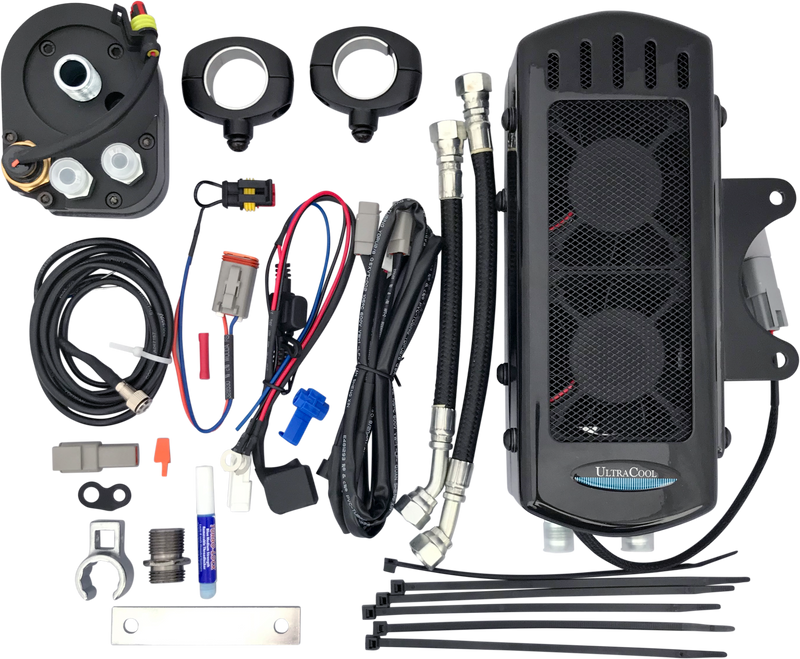

The cooler core with grill cover, dual fans, thermal switch, oil adapter, braided lines, wiring harness with relay, LED indicator light, fitting wrench, and installation instructions.

Is installation difficult?

No — the plug-and-play harness connects to the battery under the seat, and hoses connect via AN6 fittings. Detailed instructions are included.
